5 Ready Stock
Rp31.883.111 Rp69.311.110
5 Ready Stock
| Weight | 45000 g |
|---|---|
| Dimensions | 76 × 38 × 51 cm |
| Isolation | |
| Line Current | 56.8 A at 460 V (heavy duty), 65.8 A at 380 V (heavy duty), 68.3 A at 460 V (normal duty), 76.6 A at 380 V (normal duty) |
| Linearity Error | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output |
| Maximum Switching Current | relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC |
| Maximum Transient Current | 82 A during 60 s (normal duty), 89.4 A during 60 s (heavy duty) |

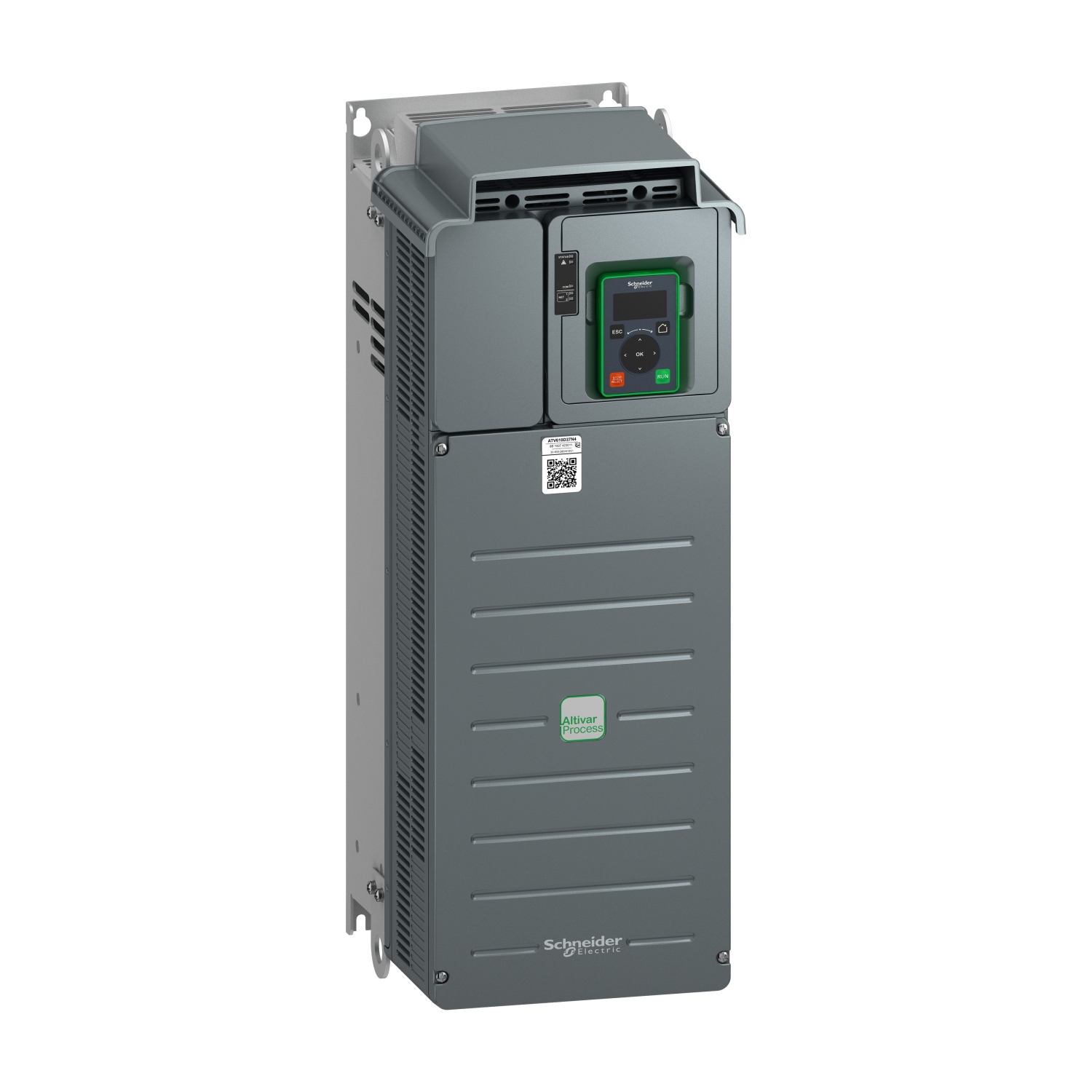

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 37kW / 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW / 40hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are, 226mm wide, 613mm high, 271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
